Ace Tech Circuit > Products > Hi-Fix board

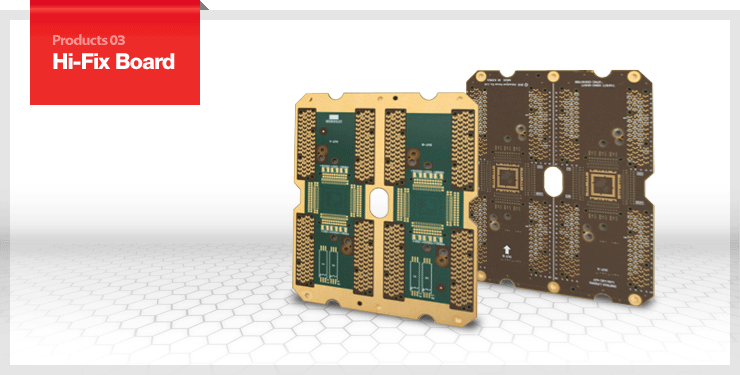

HiFix Board is used for the purpose to evaluate the electrical feature of the device.
It is combined with the Handler which is transfer power and signals for the test to Hi-Fix Board.


Specification
Unit
mm
inch
Layer
100(+)
100(+)
Base Material
FR-4
Low Dk
FR-4 High Tg
FR-4
Low Dk
FR-4 High Tg
Min. Thickness
1.6-8.4
0.063~0.33
Conductor Width
0.045
0.0018
Conductor Space
0.06
0.0024
Hole Diameter
¥Õ 0.076
¥Õ 0.003
Surface Treatment
(Hard Gold & Electroless Gold Plating)
1.3¥ìm
50¥ì¡±
Pitch
0.2
0.008
Etc
HPL, Back Drill

- 68 Layers
- 6.5T
- IVH
- 0.4 Pitch
